POLE TOP HOLE DRILLING MACHINE
(Automatic type, 6 or 8 holes once finished)
Model : FHE12 (for hole diameter max. 12mm)
1.Application:

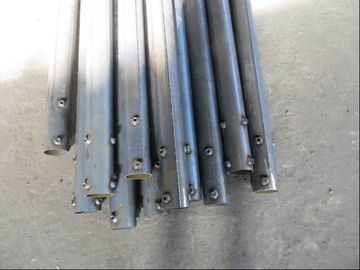

It is suitable for light pole top fixing holes quick drilling process.

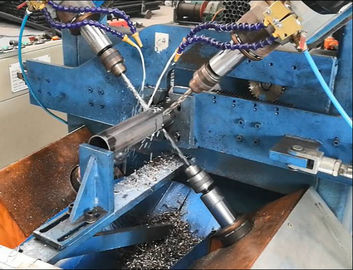

Put the light pole on the machine, the machine top stop will control the first 3 or 4 holes to top of the pole distance. Push the start button, the pneumatic clamp will clamp the pole first, then the 3 or 4 drilling heads will finish 3 or 4 holes first , then the clamping system will move pole to next position to do drilling automatic, until finish, the 3 or 4 drilling heads will stop and return back the original position. All these process are automatic. Only push one start button, all steps will be finished.

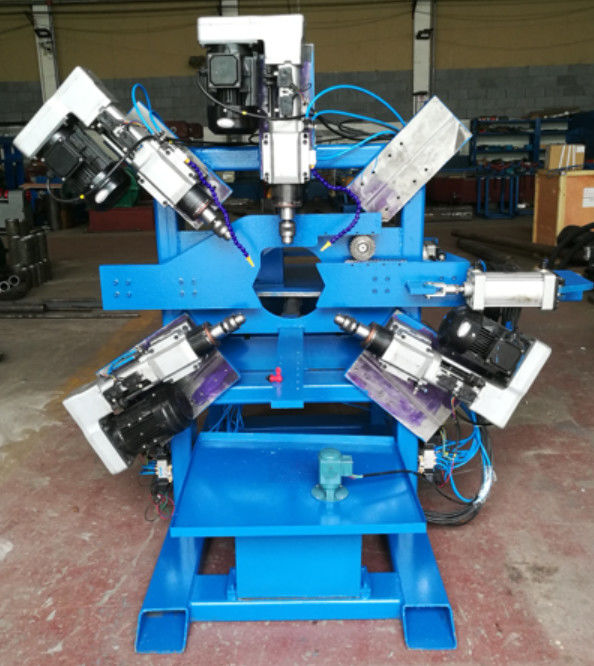

The machine is equipped with two installation locations and can be equipped with three or four uniformly distributed power heads. Used for processing 6 or 8 holes, customers choose to adjust according to their requirements.
2. The main technical indicators:
| Technical indicators | Technical parameters |
| Suitable for pipe diameter | 50~200mm |
| Suitable for pipe thickness | 2~10mm |
| Max. hole diameter | 12mm |
| Drilling cutting feed stroke | 0~30mm |
| Feed driving force钻 | 800N |
| No loading rotation speed | (550rpm) |
| Drilling motor | 1100W * 4sets |
| Air consumption for single head | 3~6 L/stroke |
| Total power consumed | 4.4 KW |
| Power supply | 380V,50Hz 3 phases,or according customer requirement |
| Overall dimension(L×W×H) | 1825x1632x1660 |
| Weight | 1000kg |
