| Brand Name: | cmc |
| Model Number: | CNC4-1500 |
| MOQ: | 1 set |
| Price: | Negociate |
| Payment Terms: | TT,LC,FOB,CIF |
| Supply Ability: | Negociate |
Quick Detail:
| Name | Other names | Brand Name | CMC |

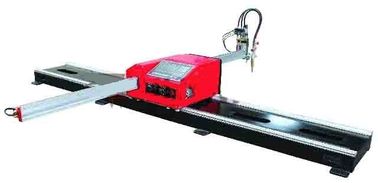

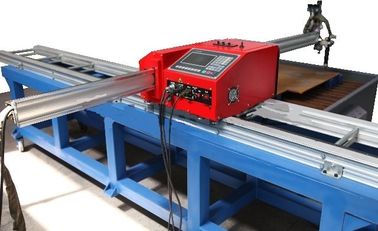

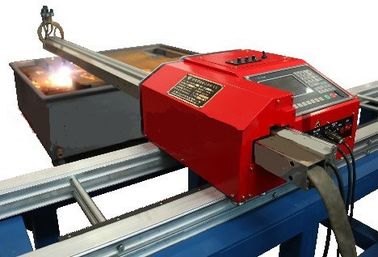

| CNC4-1500 CNC Plasma Cutting Machine For Automatic Cutting |
CNC flame cutting machine CNC cutting Mild steel cutting Big thickness cutting Thick metal sheet cutting |
Cutting range |
X axis: 1500mm Y axis: 3000mm Cutting thickness: 6-150mm |
| Advantage | Support drawing and nesting in AUTOCAD environment | Option | It can be equipped with Plasma, two founctions |
Specification:
Multi-language selection
Wider rail could cutting more stable
Smart design easy control
Host longitudinal rails imported precision dual axis linear guides, horizontal transmission by a precision aluminum extrusions and components, transmission stability, high accuracy Can cut any complex plane figures for oxyfuel flame cutting and plasma cutting machine, free to move, not accounting for fixed venue. Widely used in automotive, shipbuilding, petrochemical, boiler and pressure vessel, engineering machinery, light machinery and other industries, especially for single-piece contoured surface and mass production.
Specifications
| Mode | CNC4-1500 |
| Input voltage, Power Frequency | 220V, 50Hz |
| Rated power | 180w |
| CNC system | Adtech |
| LCD size | 5.7 inch |
| Effective cutting range | X axes:1500mm; Y axes: 3000mm |
| Flame cutting thickness | 6-150mm |
| Cutting accuracy | ±0.5 |
| Cutting type | Flame |
| Nesting soft | InteGNPS (it is compatible with AUTO CAD) |
| Packing Way | Wooden Packing |
