| Brand Name: | wuxi cmc |
| Model Number: | 2-WE67K-650/6000 |
| MOQ: | 1 set |
| Price: | Negociate |
| Payment Terms: | T/T, L/C |
| Supply Ability: | Negociate |

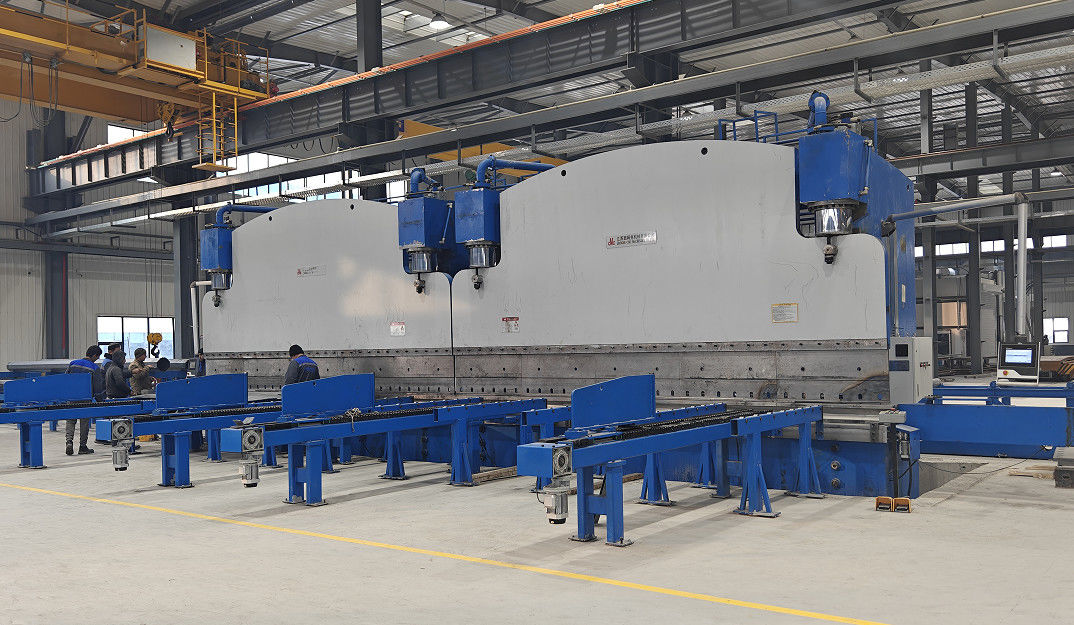

2-WE67K-650/6000 CNC TANDEM HYDRAULIC PRESS BRAKE FOR MAKING LIGHT POLE
Hydraulic press brakes are used to bend and fold metal by pressing it into a die. These presses are designed for both specialized sheet metal work and continuous production applications. They can handle tough industrial production jobs from single-cycle operations to automated cell components.
| TECHNICAL FEATURES | |||
| 1 | Type | Mult-machine Tandem Hydraulic CNC electro-hydraulic synchro | |
| 2 | Working force | 2X650Ton | |
| 3 | Length of table | 2X6000mm | |
| 4 | distance between frames | 4800mm | |
| 5 | Throat depth | 1500mm | |
| 6 | Open height | 1005mm | |
| 7 | Stroke | 320mm | |
|
8 |
Working Speed |
Unload | 70mm/s |
| Working | 7.5mm/s | ||
| Return | 75mm/s | ||
| 9 | Main motor | 2x45Kw | |
| 10 | CNC system |
Type: DELEM DA 53T Delem Co., Netherlands 2 Axis(Y1,Y2)+ table crowing system |
|
| 11 | Tooling | See the specification | |
| 12 | Main Electric Elements in cabinet | Schneider | |
| 13 | Seal in the cylinders | SKF or NOK type | |
| 14 | Hydraulic pump | SUNNY (USA BRAND) | |
| 15 | Main hydraulic component | BOSCH-Rexroth - , Germany | |
| 16 | Raster displayer | FAGOR, SPAIN | |
| 17 | weight | 2x71000kgs | |
| 18 | Overall size(mm) LxWxH | 2-6250X3840X5960 | |
| 19 | Packing: | The machine should be disassemble during transportation. Our engineer should go to customer to assemble and adjust it. | |
