| Brand Name: | CMC |
| Model Number: | 2-WE67K-400/7000 |
| TECHNICAL FEATURES | |||
| 1 | Type | Mult-machine Tandem Hydraulic CNC electro-hydraulic synchro | |
| 2 | Working force | 2X400Ton | |
| 3 | Length of table | 2X7000mm | |
| 4 | distance between frames | 5600mm | |
| 5 | Throat depth | 950mm | |
| 6 | Open height | 950mm | |
| 7 | Stroke | 320mm | |
|
8 |
Working Speed |
Unload | 60mm/s |
| Working | 7mm/s | ||
| Return | 60mm/s | ||
| 9 | Main motor | 2x30kw (Siemens brand) | |
| 10 | CNC system |
Type: DELEM DA52S Delem Co., Netherlands 2 (Y1,Y2) |
|
| 11 | Tool |

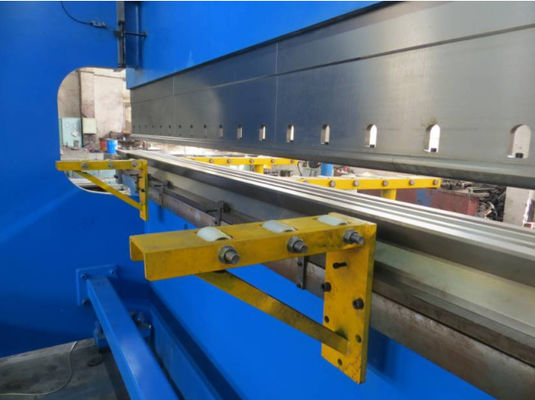

With 1 punching and 1 multi V block bottom die for making min 60mm OD octagonal taper type light pole. The up tool holder thickness is 18mm The working table with crowning system(compensation system) With front and back sheet supporting stand |
|
| 12 | Seal in the cylinders | NOK, Japan brand or SFK | |
| 13 | Hydraulic components | BOSCH-Rexroth - , Germany | |
| 14 | Hydraulic pump | SUNNY , USA | |
| 15 | Linear Raster displayer sensor | HEIDENHAIN, GERMANY | |
| 16 | Main Electric Elements in cabinet | Schneider | |
| 17 | weight | 2x50000 kg | |
| 18 | Overall size(mm) LxWxH | 2x7250x3900x5600 | |
| 19 | Packing: |
With plastic cover The machine should be disassemble during transportation. Our engineer should go to customer to assemble and adjust it. |
|
