| Brand Name: | CMC |
| Model Number: | LDC-300/2000 |
| MOQ: | 1 set |
| Price: | according to the machine requirement |
| Payment Terms: | FOB/CIF |
| Supply Ability: | According requirement |

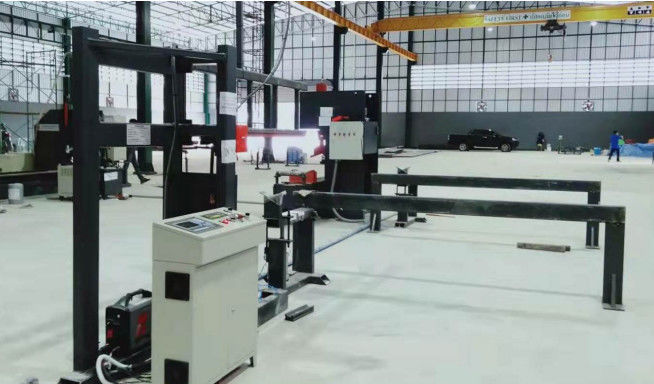

CNC LASER LIGHT POLE DOOR CUTTING MACHINE, MODEL : LDC-300/2000
(2-axis, for round,Conical and octagonal pole)
Application:
It is suitable for conical pole, round pole, octagonal light pole door CNC cutting, The cutting shape can be any which can be draw designed by computer.
The cutting source is automatic laser. So the cutting speed will be much fast, and cutting edge quality is better then plasma and flame cutting. The key point, Due to the use of the laser cutting way, the cutting gap is relatively small, and the cut pieces are generally used as door covers.
Main parameter:
| No. | Item | Parameter |
| 1 | Pole material | Steel |
| 2 |
Max. cutting length, X axis
|
2000mm (for once stroke cutting) |
| 3 |
Rotation angle, A axis
|
Any angle 0~360 degree |
| 4 | Min pipe outer diameter | 60 |
| 5 | Max pipe outer diameter | 300 |
| 6 | Max weight of pole | 500kg |
| 7 | Max length of pole | 12m,14m |
| 8 | CNC control system |
Fangling L6000 |
| 9 | Fiber Laser source |
BFL-CW2000T |
| 10 | Laser cutting torch | E do 2.0 |
| 11 | Laser height adjuster | iHC100B |
| 12 | Laser height adjusting system | MS-J150 |
| 13 | Laser cooling device 激 | HL-2000-QG2/2 |
| 14 |
Suggestion of cutting gas: O2 |
O2 |
| 15 |
Cutting thickness and speed |
|
| 16 | Cutting Gap | Around 0.5mm |
| 17 | Main motor/Brand | Servo motor |
| 18 | Control axis | 2 axis, X,,A |
| 19 |
Working mode: as assembly line type, left in and right out, one way production direction |
Those pole waiting for cutting shall be placed on one side of the machine in a row, and those finished pole shall be moved to the other side of the machine in a row. Labor saving, fast lading |
| 20 | Environmental temperature | 0-45℃ |
| 21 | Humidity | <90%, no condensation |
| 22 | Surroundings | Ventilation, no big shake, |
| 23 |
Input voltage (Can be made according to buyer’s country voltage requirement.) |
Single phase,220V, 50HZ Three phases, 380V, 50HZ |
