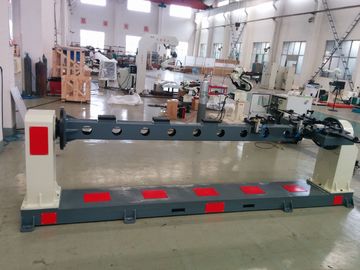

3D Automatically Robot Fiber Laser Cutting Machine Robotic Welder

Brand Name:	CMC
MOQ:	1 set
Price:	according to the machine requirement
Payment Terms:	Down payment 30% T/T, 70% T/T before shipping
Supply Ability:	According requirement

Detail Information

Product Description

Detail Information

Place of Origin:

wuxi, china

Certification:

ISO,CE

Packaging Details:

Suitable for container shipping

Supply Ability:

According requirement

Highlight:

Robotic Welding Arm

Robotic Welding Equipment

Product Description

3D automatically robot fiber laser cutting machine for metal robot laser welding

Large Payloads Robots

B Series (100-300kg), CX Series (110-210kg), Z Series (100-300kg)

B Series

OPTIMIZED BODY SHOP ROBOTS

CX Series

NEW GENERAL-PURPOSE LARGE SIZE ROBOTS

Z Series

THE FLEXIBLE HEAVY-DUTY ROBOTS

Typical Applications:

Assembly
Friction Spot Joining
Machine Tending
Material Handling
Material Removal
Sealing / Dispensing
Spot Welding

B Series

OPTIMIZED BODY SHOP ROBOTS

Click on a robot below to learn more.
Note: images not shown to scale.

BX100S

Payload :100 kg
Axes :6
Reach :1,634 mm
Repeatability :±0.2 mm

BX100S

BX100N

Payload :100 kg
Axes :6
Reach :2,200 mm
Repeatability :±0.2 mm

BX100N

BX100L

Payload :100 kg
Axes :6
Reach :2,597 mm
Repeatability :±0.2 mm

BX100L

BX130X

Payload :130 kg
Axes :6
Reach :2,991 mm
Repeatability :±0.2 mm

BX130X

BX165N

Payload :165 kg
Axes :6
Reach :2,325 mm
Repeatability :±0.2 mm

BX165N

BX165L

Payload :165 kg
Axes :6
Reach :2,597 mm
Repeatability :±0.2 mm

BX165L

BX200L

Payload :200 kg
Axes :6
Reach :2,597 mm
Repeatability :±0.2 mm

BX200L

BX250L

Payload :250 kg
Axes :6
Reach :2,812 mm
Repeatability :±0.2 mm

BX250L

BX300L

Payload :300 kg
Axes :6
Reach :2,812 mm
Repeatability :±0.2 mm

BX300L

BT200L

Payload :200 kg
Axes :6
Reach :3,151 mm
Repeatability :±0.2 mm

BT200L

CX Series

NEW GENERAL-PURPOSE LARGE SIZE ROBOTS

Click on a robot below to learn more.
Note: images not shown to scale.

CX110L

Payload :110 kg
Axes :6
Reach :2,699 mm
Repeatability :±0.3 mm

CX110L

CX165L

Payload :165 kg
Axes :6
Reach :2,699 mm
Repeatability :±0.3 mm

CX165L

CX210L

Payload :210 kg
Axes :6
Reach :2,699 mm
Repeatability :±0.3 mm

CX210L

Z Series

THE FLEXIBLE HEAVY-DUTY ROBOTS

Click on a robot below to learn more.
Note: images not shown to scale.

ZH100U

Payload :100 kg
Axes :6
Reach :1,634 mm
Repeatability :±0.3 mm

ZH100U

ZX130S

Payload :130 kg
Axes :6
Reach :2,651 mm
Repeatability :±0.3 mm

ZX130S

ZX130L

Payload :130 kg
Axes :6
Reach :2,951 mm
Repeatability :±0.3 mm

ZX130L

ZX165U

Payload :165 kg
Axes :6
Reach :2,651 mm
Repeatability :±0.3 mm

ZX165U

ZX200S

Payload :200 kg
Axes :6
Reach :2,651 mm
Repeatability :±0.3 mm

ZX200S

ZX300S

Payload :300 kg
Axes :6
Reach :2,501 mm
Repeatability :±0.3 mm

ZX300S

ZT130S

Payload :130 kg
Axes :6
Reach :3,230 mm
Repeatability :±0.3 mm

ZT130S

ZT165U

Payload :165 kg
Axes :6
Reach :3,230 mm
Repeatability :±0.3 mm

ZT165U

ZT165X

Payload :165 kg
Axes :6
Reach :2,830 mm
Repeatability :±0.3 mm

ZT165X

ZT200S

Payload :200 kg
Axes :6
Reach :3,230 mm
Repeatability :±0.3 mm

Product feature

Smaller Focal spot and cutting gap. Much more efficient and better processing quality.
Extremely high cutting speed which equals to two times of tradition CO2 laser cutting machine with the same power specification.
Adopt international top brand laser source with stable performance.
The photoelectric conversion rate is three times higher than traditional CO2 laser cutting machine, and it’s environmental protection.
Lower running cost compare with traditional CO2 laser cutting machine, the power consumption is 20%~30% of CO2 laser cutting machine.
The maintenance cost of fiber laser cutting machine is much lower since it’s without reflective lenses.
Convenient operation with fiber transmission laser route adjustment is unnecessary.
Satisfied with imported AC server motor system and transmission system to ensure the high speed, high precision and high reliability.
Gantry design with double drive structure, high damping machine tool with better rigidity which can stand higher speed and reliability.
The rack and guide is comprehensively sealed to prevent the friction without oil and dust pollution in order to make the drive system much longer service time and ensure the movement precision of the machine tool.
Professional CNC laser control system with computer control which is more simple and convenient for operation.
